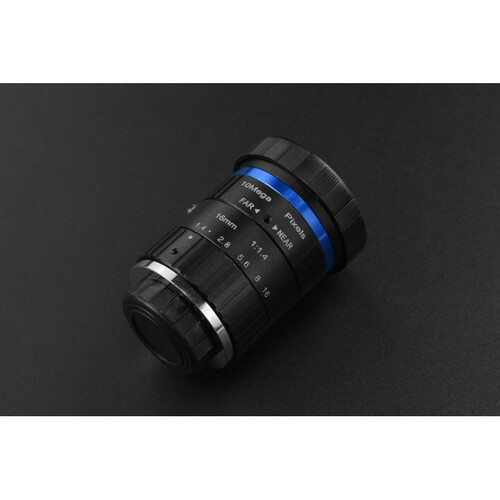

16mm 10MP Telephoto Lens for Raspberry Pi & Jetson Nano Camera Module Cheap Affordable

Note: The product not include Jetson Nano.

This is a 16mm 10MP Telephoto Lens which is suitable to use with the Raspberry Pi High Quality Camera and Jetson Nano 12.3MP camera. It has a high level of zoom and can be used to target specific subjects located far away. The lens can be easily screwed into the Raspberry Pi High Quality Camera. Also, it comes with front and back covers for protection when it’s not in use.

Dimension

16mm 10MP Telephoto Lens with Jetson Nano

Features

Narrow angle of view suitable for viewing distant subjects

Adjustable aperture from F1.4 to F16

Front and back cover for protection

Specification

Resolution: 10Mega Pixel

Image format: 1″ (Φ16, 12.8×9.6)

Focal length: 16mm / 0.63 inches

Aperture : F1.4-16

Mount: C

Angle of View (H×V):

     1″: 44.6°x 33.6°

     2/3″: 30.0°x 23.2°

     1/1.8″: 24.7°x 18.6°

     1/2″: 21.8°x 16.4°

Distortion: 1″(-0.7%) 1/2″(-0.5%)

M.O.D: 0.2m

Flange back focal length: 17.53mm

Dimensions: Φ39x50mm

Optical total length: 69.53mm

Weight: 135.3g

Lens structur: 9G

Filter size: UV M37.0x0.75P

Method of operation:

     Zoom: ——

     Aperture: Manual iris

     Focus: Manual focus

Operating Temperature: -20°C~80°C

Shipping List

16mm Telephoto Lens x1

C/CS Connecting Ring x1
