Accusys A12T3-Share 12-Bay Tower RAID System with Single Power Supply Sale In China

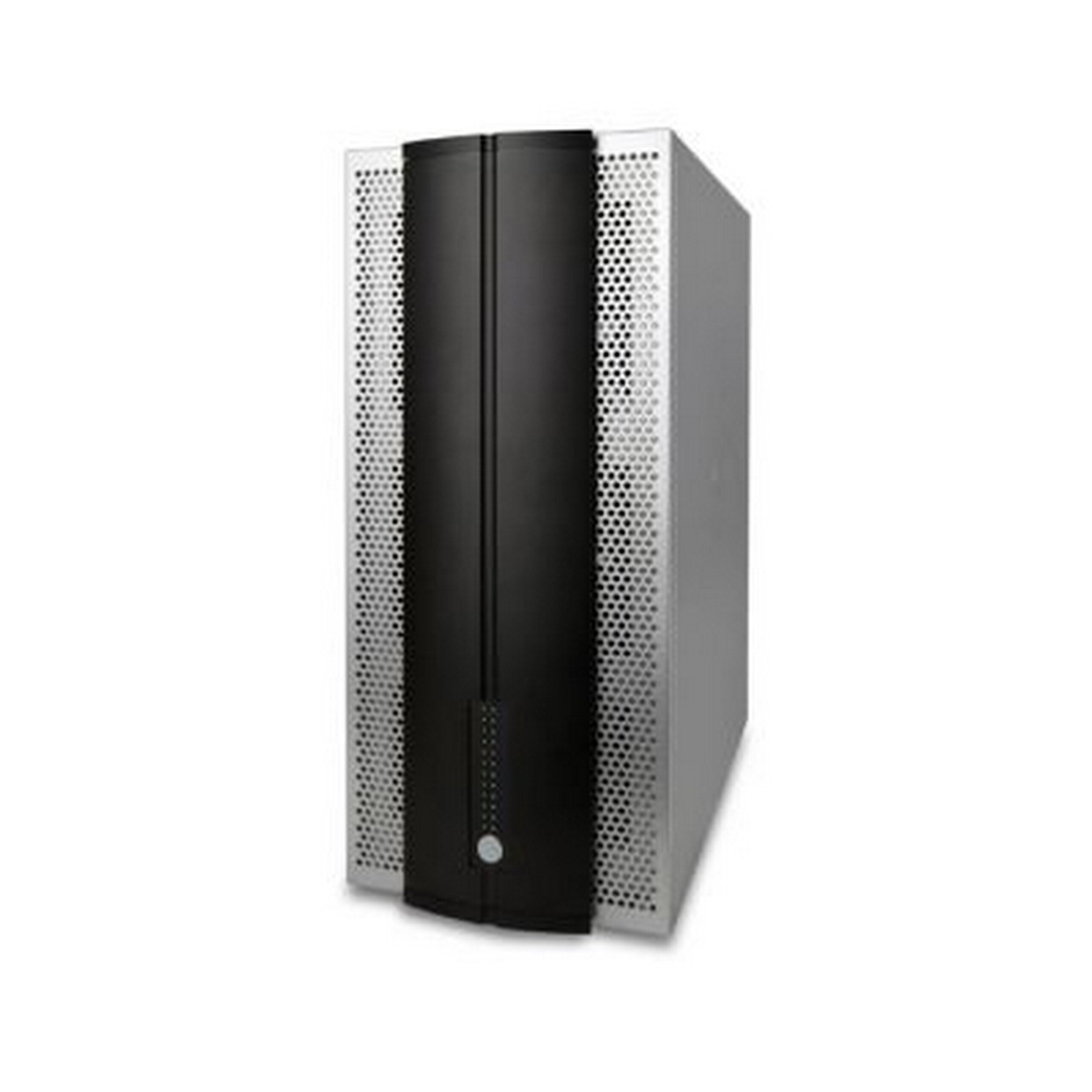

Accusys A12T3-Share 12-Bay Tower RAID System with Single Power Supply

With the adoption of latest Thunderbolt 3 technologies, Accusys has taken bold steps in positioning itself as an innovator in storage. A12T3-Share, continuing the success of its previous generation in Thunderbolt SAN, is ready to shine.

Thunderbolt 3 on A12T3-Share
More Speed. More Power.
More Possibilities.
A12T3-Share is a 12-bay tower storage array with 4 Thunderbolt 3 host ports. The read/wirte speed of Thunderbolt 3 is twice as fast as that of Thunderbolt 2. Users can configure the A12T3-Share as a Storage Area Network (SAN) storage pool when integrated with SAN software, or partition the storage array into several storage volumes and benefit from the high performance of Thunderbolt ports as direct attached storage with immense capacity.

Thunderbolt 3 Make It’share
The Ultimate
Thunderbolt 3
Shareable Storage Solution
No Thunderbolt to fibre channel adapters necessary, nor is a fibre channel switch required. With 4 Thunderbolt connections, A12T3-Share allows for 4 Thunderbolt clients to share content and reach up to 2600 MB/s transfer speeds, more than ever we could afford to have true collaborative workflows for video editors and any digital content creator; this could work well for small work groups.

T-Share Expansion
Features Optimized, Efficiency Maximized
A12T3-Share is equipped with 4 Thunderbolt 3 ports and this can be expanded to 8 ports by pairing two A12T3-Share devices using the T-Share Expansion feature. This allows users to reach storage capacities of nearly 1 Petabyte (960TB) of data with connecting extra JBOD systems.

Technical Specifications

System Type
12-bay Tower RAID system
Interface
Thunderbolt 3 * 4
PCIe 3.0 *1
Data Transfer Rate
Thunderbolt 3 : 40 Gb/s
QSFP : 32 Gb/s
Disk Interface
SAS / SATA * 16
Disk Type
3.5″ / 2.5″ / SSD
RAID Level
0, 1, 5, 6, 0+1, JBOD
Cache Memory
2G DDRlll 1866 with ECC-protected
JBOD Expansion
JBOD * 3
T-Share Expansion
Thunderbolt 3 * 8, JBOD * 6
RAID Controller Functions
Online RAID Set Expansion and RAID LEVEL Migration
Online bad block data recovery and reallocation
Online disk scrubbing with data refresh and parity
Disk health monitorning by S.M.A.R.T
Array Roaming and Drive Traveling
Mirror Snapshot for fast backup and restore
Disk Lag Proof Technology to guarantee disk timely response
Equalization Mode to smooth the performance of sequential I/Os and reduce large fluctuation
Management
Java-based RADIGuard X GUI
Event log saving in text file for quick trobleshooting
Event notification by email (SMTP)
LED indicator for RAID & disk drives status in front
400W (A12T3-Share: Single or A12T3-Share+: Redundant). 110V~240V power supply
Two 12cm x 12 cm Fan with Smart Fan Control feature
Physical
L: 369mm, W: 175mm, H: 394.6mm/ 15.2 kg
