Chief MTM1U Medium FUSION Micro-Adjustable Tilting TV Wall Mount for 47-Inch Displays 2025 New For Sale

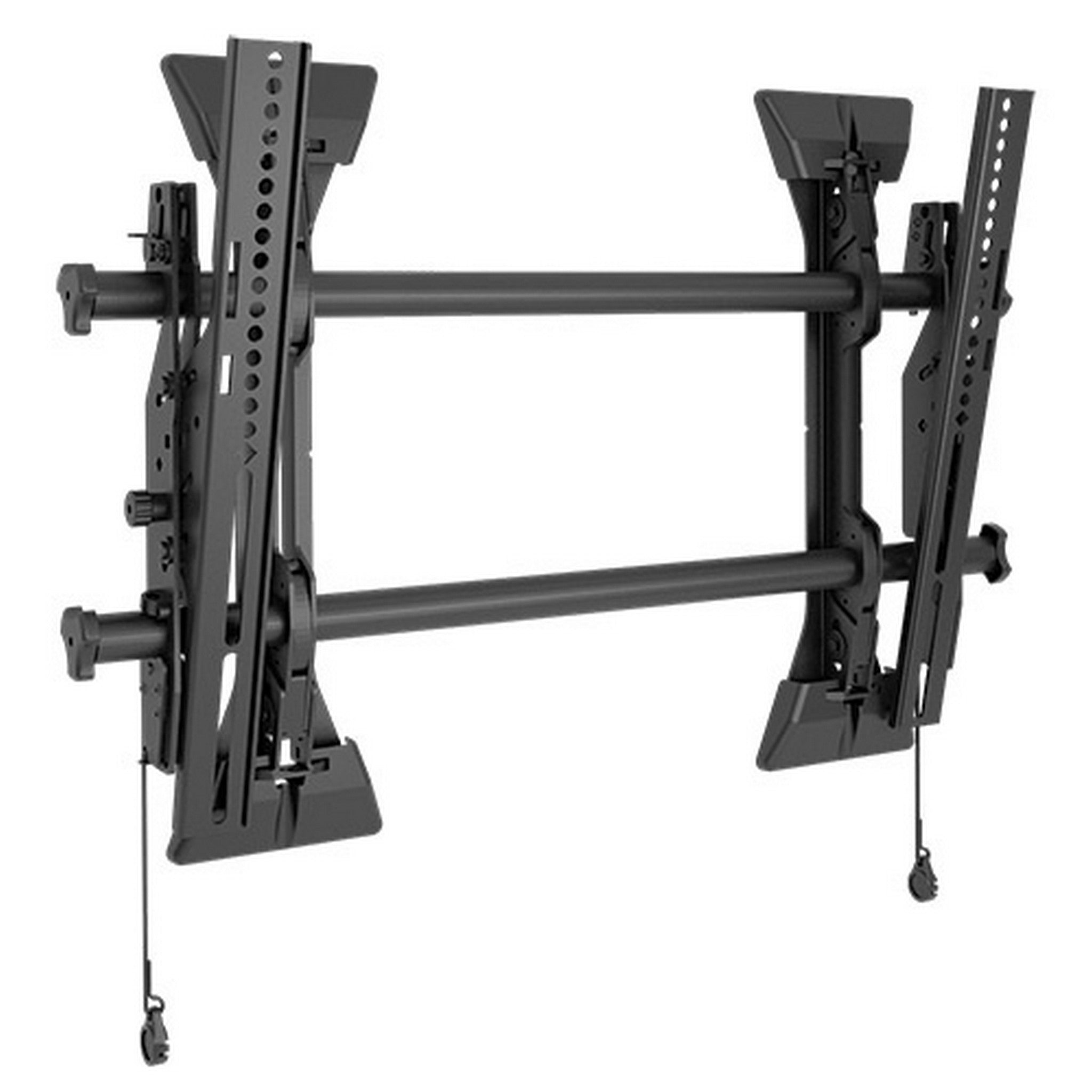

Chief MTM1U Medium FUSION Micro-Adjustable Tilting TV Wall Mount for 47-Inch Displays

Chief upgraded fixed wall mounts based on installer feedback and direct observations of installers in the field. Many new features join Fusion favorites like Centerless shift, Centris tilt, ControlZone leveling adjustment and ClickConnect Latching.

New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security.

Installer-inspired Fusion tilt mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.

For single stud applications, order the FCA1S Single Stud Adaptor Accessory.

Key Features

• Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
• ControlZone Leveling for post-installation fine tuning of height and leveling
• Centerless Shift provides up to 12.9” (327 mm) of post-installation lateral shift for limitless centering
• Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile
• Set screws keep the mount rigid, stable and secure throughout the life of the installation
• ClickConnect offers an audible click when the screen safely engages with the mount
• Built-in cable stand provides easy access under the screen
• A full line of accessories can be installed with the mount and the entire unit can be adjusted together
• Multiple installation options for various stud distances
• Exclusive nesting spacers can be stacked to achieve any depth
• Quick-Store Cords use magnets to easily store and access pull cords
• Improved cable management with new end caps
• Integrated Security
• Ships with a custom hardware kit that can be hung from mount rails if installing in stages
• Easy Open box with less waste to throw away

Technical Specifications

Certifications
UL Listed
Color
Black
Lateral Shift
12.9” (327 mm)
Manual Height Adjustment
1” (25 mm)
Maximum Screen Thickness
6”
Minimum Depth
2” (51 mm)
Mounting Pattern Compatibility (Universal Versions)
100 x 100 mm – 600 x 400 mm
Orientation
Landscape
Overall Dimensions (H x W x D)
17 x 25.75 x 2” (432 x 654 x 51 mm)
Shipping Weight
19.31 lbs
Solution Type
Universal
Tilt
+2°, -12°
Typical Screen Sizes
26 – 47”
Wall Stud Compatibility (inches)
16-24
Weight Capacity
125 lbs (57 kg)
