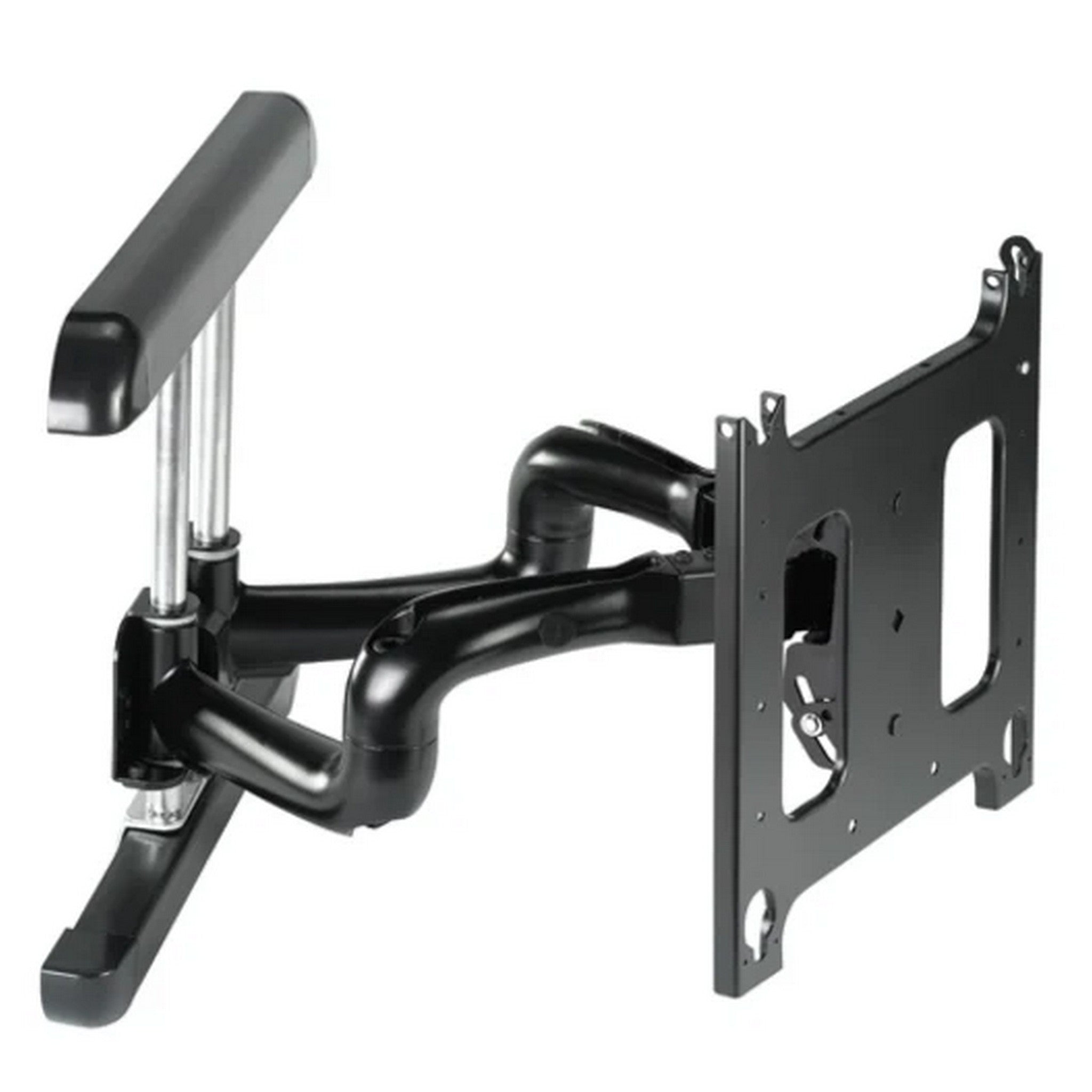

Chief PNRUB Large Flat Panel Swing Arm Wall Display Mount, 25-Inch Extension

Large Flat Panel Swing Arm Wall Display Mount – 25 Inch Extension. View large flat panel displays from any angle.

Key Features

• Centris Fingertip Tilt allows you to select the perfect tension for your screens center of gravity
• Post-installation height adjustment up to 1 (25 mm) for ultimate flexibility
• Q-Latch Mounting System secures flat panel to mount with a latching flag
• Easy connect/disconnect without tools
• Extends up to 25 (635 mm) for viewing from any angle
• CableTrac System provides channeled cable management for easy cable routing
• Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen)

Technical Specifications

Dimensions & Measurements
Depth
3.3 in (8.4 cm)
Height
21.2 in (53.9 cm)
Lateral Shift
9 in (228.6 mm)
Minimum Depth
3.3 in (8.3 cm)
Shipping Weight
66 lbs (29.9 kg)
Tilt
+ 5° / – 15°
Typical Screen Size
42”- 86” (1067mm – 2184mm)
Weight Capacity
200 lbs (90.7 kg)
Width
27.1 in (68.8 cm)
Characteristics & Features
Adjustability
Extension, Swivel, Tilt, Micro-Adjustable, Height Adjustable, Lateral Shift
Application
Wall
Color
Black
Notes
Depth and Extension do not include interface bracket (adds 0.5 – 1.5”)
Orientation
Landscape
Portrait
Post-Installation Leveling Roll
Yes
Solution Type
Universal
TAA Compliant
No
VESA Mounting Pattern
200 x 200mm – 862 x 517mm
Certifications & Warranties
Certifications
UL Listed
