Dual 12″ Loaded Subwoofer Ported Enclosure With ZR12.4D 1500 Watts Rms Outlet Countdown Package

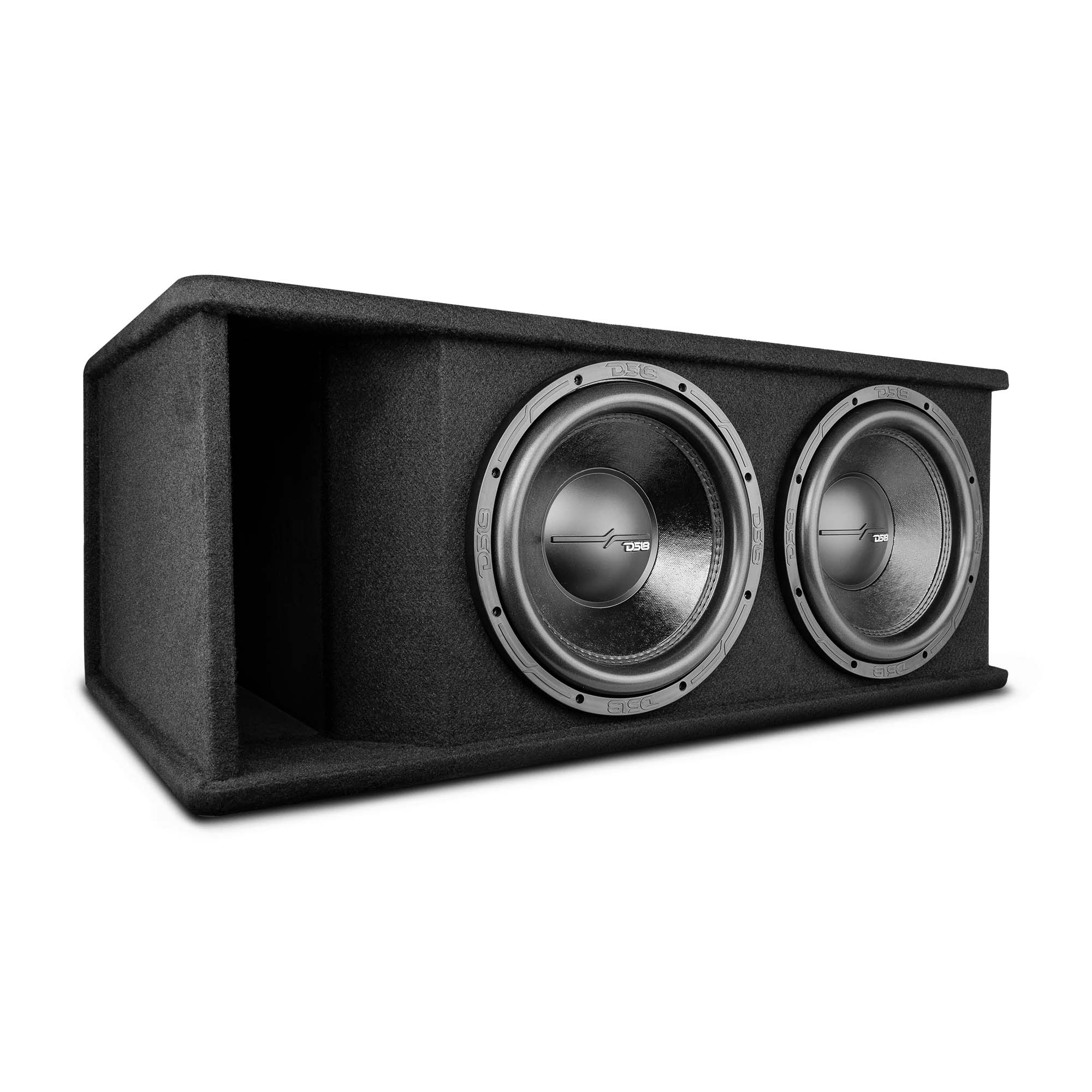

DS18 ZR212LD Bass Package 2 x ZR12.4D 12″ Subwoofers In a Ported Box 3200 Watts

The ZR212LD provides dual 12 inch subwoofers loaded into a ported box for the listeners who like it loud!

The ported box is tuned to 29 Hz and helps get the most from your subwoofers by delivering a deeper, punchier bass. Included in the ported box are two ZR12.4D subwoofers, one of our bestselling car audio subs, designed with dual 4-Ohms voice coils wired in parallel for a nominal impedance of 1-Ohm.

This loaded subwoofer combo offers great sound through high-quality and high-power subwoofers in a prefabricated box that is guaranteed to last! The RMS requirement is 1600W RMS and 3200W max: so in order to power this combo to maximum potential, we recommend a 2000W RMS Amplifier like the ZR2000.1D, H-KO2, or EXL-P2000X1D.

Highlights

• The box is constructed of thick 3/4 inch MDF for great strength, resonance, and tuned to 29hz for low and hard hitting bass
• Dual 12 inch subwoofers with the cone area to blast great sounding bass more efficiently Subwoofers

Key Features

ZR12.4D

•  Two 12 inch DVC subwoofer
•  Max Power Handling: 1600 watts each
•  RMS Power Handling: 800 watts each
•  Frequency Response: 25hz-200hz
•  Voice Coil Diameter: 2.5″
•  Voice Coil Material: Copper
•  Impedance: Dual Voice Coil 4-Ohm
•  Sensitivity: 82 DB
•  Magnet Weight: 100 Oz
•  Magnet Material: Ferrite
•  Mounting Depth: 6.6″
•  Xmax: 25mm one way

Box:

• Box Material: 3/4 inch MDF
•  Box Covering: Carpet with DS18 logo
•  Box Tuning: 29hz
•  Box Type: Side Ported
•  Internal Volume: 5.3 ft3Demensions:
•  Height: 14.48″
•  Width: 36.22″
•  Depth 1: 19.68″
•  Depth 2: 21.65″

Great For:

• Car Audio
• Pro Audio
• Home Solutions
• Hi-Fi Installation
• DIY Projects
