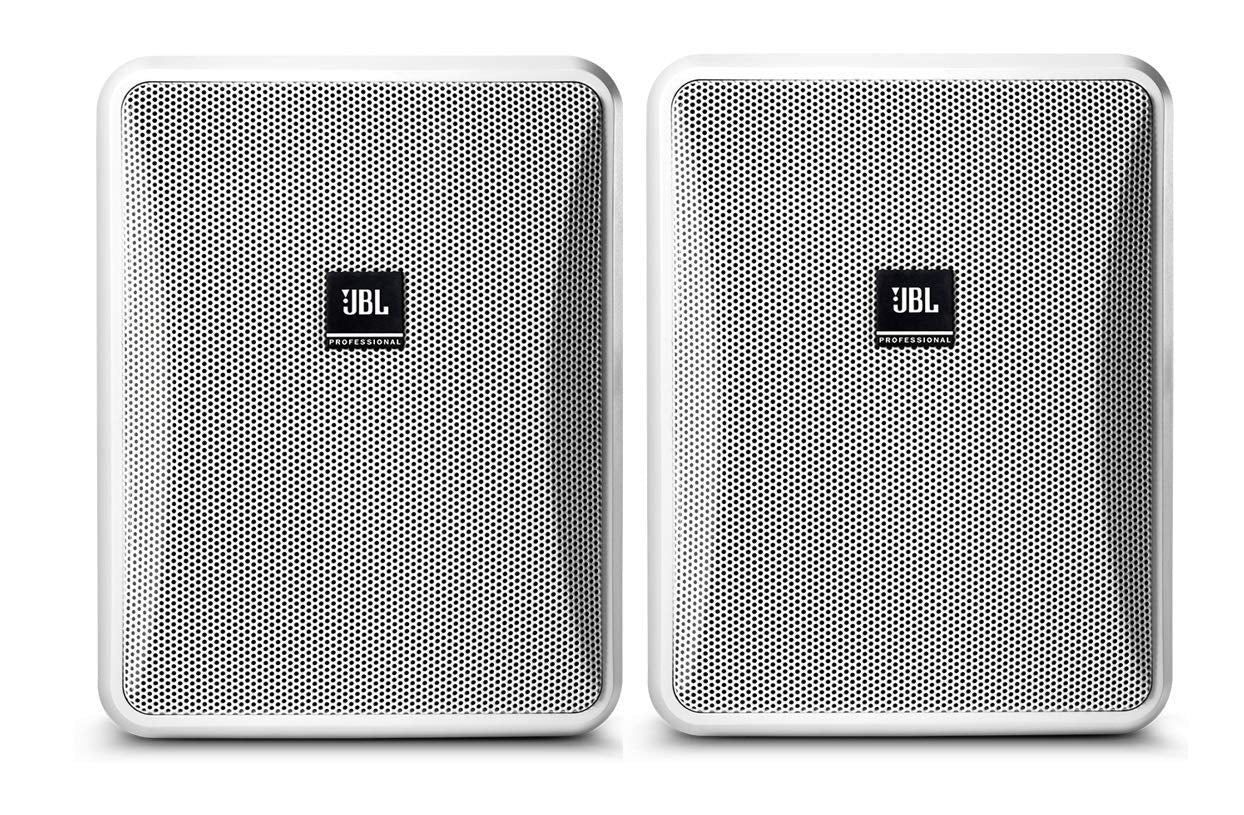

JBL Control 25-1-WH | 5.25inch Two Way Vented Loudspeaker White Pair

The JBL Control 25-1-WH is a highly versatile and durable two-way loudspeaker, featuring a 5.25-inch woofer and a 3/4-inch PEI diaphragm tweeter with fluid cooling. Designed with a broad sonic character and a wide dispersion pattern, this speaker is perfect for various applications, such as retail stores, restaurants, health clubs, theme parks, educational facilities, and more. Whether for background or foreground music and paging, the Control 25-1 delivers premium audio quality and high-output performance.

The contemporary high-design look of the JBL Control 25-1-WH allows it to blend seamlessly into any decor, making it a favored choice for settings that require both aesthetic appeal and top-notch audio fidelity. The speaker’s weather-resistant enclosure and transducers ensure reliable performance both indoors and outdoors. Additionally, built-in InvisiBall mounting hardware and available U-bracket make for versatile and secure installation options.

The JBL Control 25-1-WH is engineered to provide consistent and high-frequency sound coverage across its 100° x 100° dispersion pattern. With power handling capabilities of 100 Watts (200 Watts program) and a broad frequency response of 60 Hz to 20 kHz, this loudspeaker ensures a dynamic and immersive audio experience. Its built-in 70V/100V multi-tap transformer adds further flexibility for different sound setups.

Key Features

• 5-¼” woofer with woven fiberglass cone
• 3/4” PEI diaphragm tweeter with fluid cooling
• Built-in InvisiBall mounting hardware, plus available U-bracket
• Weather-resistant enclosure and transducers
• Wide 100° x 100° sound coverage
• 100 Watt power handling (200 Watt program)
• High fidelity sound character
• Built-in 70V/100V multi-tap transformer

Specifications

• Frequency Range (+/-10 dB): 60 Hz to 20 kHz
• Frequency Response (+/-3 dB): 85 Hz – 17 kHz
• Power Rating: 200 W Continuous Program (2 hrs), 100 W (400W peak) Continuous Pink Noise (2 hrs), 75 W (300W peak) Continuous Pink Noise (100 hrs)
• Maximum Input Voltage: 25.3 V RMS (2 hrs), 50.6 V peak
• Maximum SPL: 110 dB ave. Continuous Pink Noise (116 dB peak)
• Sensitivity: 90 dB, 1W/1m (ave. 100 Hz – 10 kHz)
• Coverage Angle: 100° x 100°
• Directivity Factor (Q): 6.04 (averaged 1kHz – 16kHz)
• Directivity Index (DI): 7.6 dB (averaged 1kHz – 16kHz)
• Nominal Impedance: 8 ohms
• Crossover Type: 2nd order low-pass, 3rd order high-pass
• Transformer Taps: 70V: 30W, 15W, 7.5W, 3.7W / 100V: 30W, 15W, 7.5W
• Low Frequency Driver: 135 mm (5.25 in), woven-fiberglass cone
• High Frequency Driver: 19 mm (0.75 in) PEI diaphragm
• Enclosure Material: High Impact Polystyrene (HIPS), painted with UV resistant paint
• Grille: Zinc-plated, finished in TGIC polyester powder coating
• Dimensions (H x W x D): 243 x 188 x 145 mm (9.6 x 7.4 x 5.7 in)
• Net Weight: 3.4 kg (7.5 lbs)

Package Contents

• 2 x JBL Control 25-1-WH speakers
• InvisiBall wall-mounting system
• 6 mm x 100 mm hex key
• User manual
