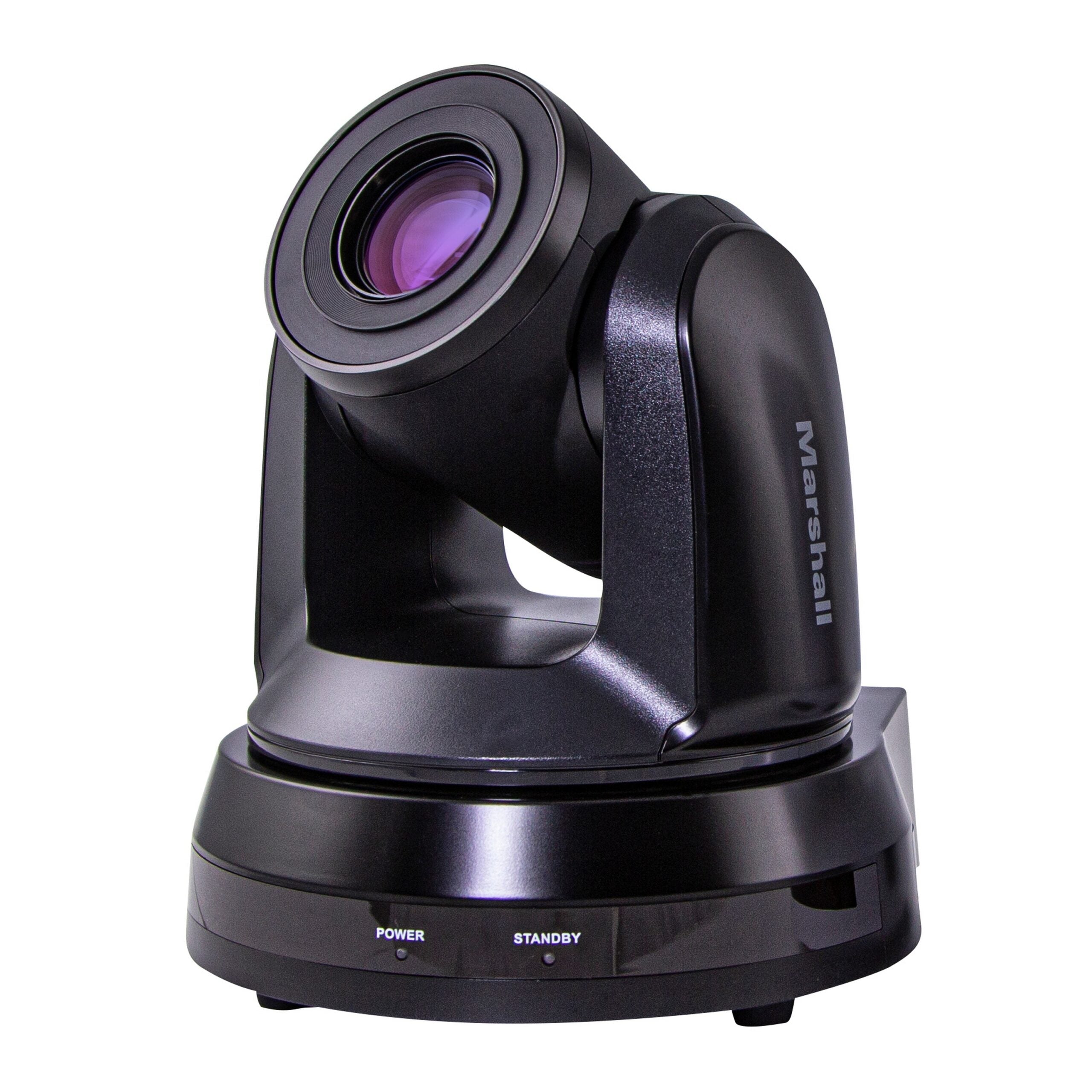

Marshall Electronics CV620-BI 20x Full-HD60 IP PTZ Camera, Black

Marshall CV620-BI/WI features a 20x optical zoom range and flexible IP, 3GSDI, and HDMI simultaneous outputs with clear Full-HD images up to 1920x1080p at 60fps. Remote adjust and match settings include Iris, Zoom, Pan/Tilt, White Balance, Exposure, Pedestal, and many more over long distances via IP, VS-PTC-IP controller, Video Management Software (VMS), Software GUI, OBS Plugins/Docks, vMix and compatible 3rd party control decks.

Crisp Full-HD Video Output
The CV620 is built around a professional-grade, 2-Megapixel 1/2.8-inch Sony sensor, with smooth 20x Optical Zoom (5.3~110mm) outputting HD video up to 1920x1080p60fps, 1920x1080i and 1280x720p.

Versatile Camera Position
The CV620 is equipped with synchronous pan, tilt, and zoom motors with various speed adjustment for smooth and silent camera movements during operation. A 20X optical zoom block provides flexibility from 5.3mm to 110mm, maintaining image crispness in wide and tight shots.

Easy I/O and Control
Simultaneous IP, 3GSDI and HDMI outputs with command options of Visca over IP, RS-422, RS-232, or IR remote control provide flexibility for inclusion in most modern workflows. Also, easy one-cable to camera setup via IP ethernet cable for control, video, audio, tally and PoE+ (power).

Flexible Control Sources
Marshall IP PTZ Cameras are setup to be controlled from IR remote (included), VS-PTC-IP or VS-PTC-200 controllers, Video Management Software (VMS), Software GUI through web, OBS plugins/docks, vMix and other 3rd party software/hardware control decks.

Key Features

• 2 Megapixel Full-HD Sensor (Sony 1/2.8″)
• 20x Optical zoom (5.3mm~110mm) starting at 60∞ H.AOV
• 340 Degrees pan and 120 Degrees tilt range with various PT selectable speeds
• 3GSDI, HDMI and IP (H.264) available outputs
• IP formats: DHCP, DNS, HTTP, HTTPS, IPv4, NTP, RTSP, TCP, SRT, MPEG-TS, RTMP, RTMPS
• Full-HD: 1920x1080p, 1920x1080i (interlaced) and 1280x720p
• 60, 59.94, 50, 29.97, 25 frames per second
• 3.5mm TRS Stereo Audio over I/O cable (Mic/Line)
• 12V Power cable included (16W max) or PoE+ (18W max)
• Operating Temp: 0 to 40 Degrees C, Storage Temp: -20 to 60 Degrees C

Technical Specifications

Sensor
SONY IMX327
Video Format
1080p/60,1080p/30
1080p/59.94,1080i/59.94
1080p/50,1080p/25
1080p/29.97
1080i/60,1080i/50
720p/60
720p/59.94
720p/50
Video Output (HD) Interface
3G-SDI / HDMI / Ethernet (IP)
Optical Zoom
20X
Horizontal Viewing Angle
60 Degrees (Wide) to 3 Degrees (Tele)
Panning Angle
‘ +/-170 Degrees
Panning Speed
120 Degrees /sec
Aperture
F1.6~F3.6
Focal Length (lens spec)
5.33~110 mm
Shutter Speed
1/1 to 1/10,000
Minimum Object Distance
∞~1.5m
Minimum Illumination
1.0Lux (F1.6, 50IRE, 30fps)
Focus System
Auto, One-push AF, Manual
Gain Control
Auto/ Manual
White Balance
Auto/ Manual
Exposure Control
Auto/Manual
3D NR
yes
Aperture
F1.6~F3.6
Focal Length (lens spec)
5.33~110 mm
Image Flip
mirror/ flip/ mirror + flip
Preset Positions
128 savable with optional transition speeds
Control Interface
VISCA/ VISCA over IP/ Onvif/ Webpage/ IR Remote
Control Protocol
ONVIF, VISCA, PELCO D
Tally Light
Yes, Front Tally Light
PoE
IEEE 802.3at (PoE+)
Video Stream
RTSP, RTMP, RTMPS, SRT, MPEG-TS
Video Compression
H264: 25/30/50/60 fps 1080p/720p
MJPEG
1080p 30/15 fps
Audio Input
Line in/ Mic in
Audio Output
Ethernet / SDI / HDMI
IR Pass-through
Yes
IR Receiver
Yes
IR Remote Control
Yes
Power Consumption
DC: 16W max
PoE+:18W max
Weight
1.9 Kg
Dimensions
185 x 186 x 174 (mm)
Storage Temps
-20 to 60 Degrees C
Operating Temps
0 Degrees C to 40 Degrees C
