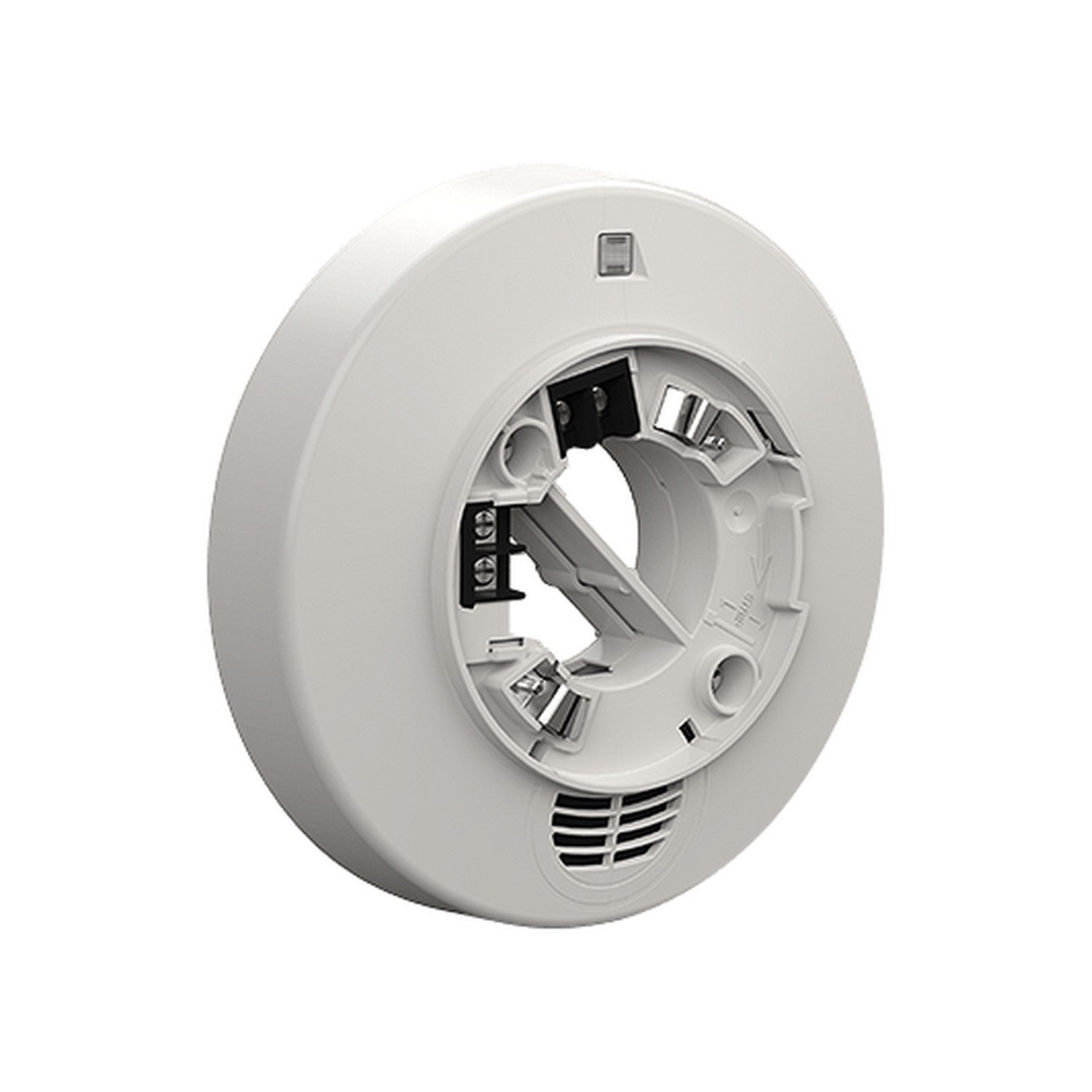

Potter PAD100-SB Addressable Sounder Base

The Addressable Sounder Base 6” (PAD100-SB) is a sounder base that may be utilized in a variety of applications. The base has a locking feature for the sensor that may be used or removed in the field. Once the head is removed, the sounder is accessible in the bottom of the unit.

Key Features

• Integrated Sounder in base
• 75 dB (UL 464 Listed) sounder output
• Sounder independent of sensor, allows for a single station,
• grouped or all-call
• May be mapped to any device connected to the control panel
• Terminals accept 22 to 12 AWG wire sizes
• Supports Class A, Class X and Class B wiring
• Does not require SLC Loop address
• UUKL Listed for Smoke Control

Technical Specifications

Addressable
Yes
Device Supported
Sounder
Environmental Conditions
Sound Emission
75dB
Physical Characteristics
Color
White
Diameter (mm)
160.02
Height
0.8”
Height (mm)
19.05
Product Color
Eggshell White
Product Information
Diameter
6.3”
Miscellaneous
Certifications & Standards
UL Listed
FM Approved
Features
Lockable
