PRO-ZXI 6×9″ Mid-Range Bullet Loudspeaker Neodymium/Ferrite Magnets 300 Watts Rms 4-Ohm Cheap Professional

DS18 PRO-ZXI694BM 6X9″ Mid-Range Loudspeaker with Bullet 600 Watts 4-Ohm

The ZXi series brings Pro Audio to a bright new level of elegance, clarity, and loudness.

These speakers were designed specifically for the audio enthusiast that wants unparalleled volumes with amazing sound quality all while absorbing the power thrown at efficiently allowing it to play up to extreme volumes with authority for extended periods of time.

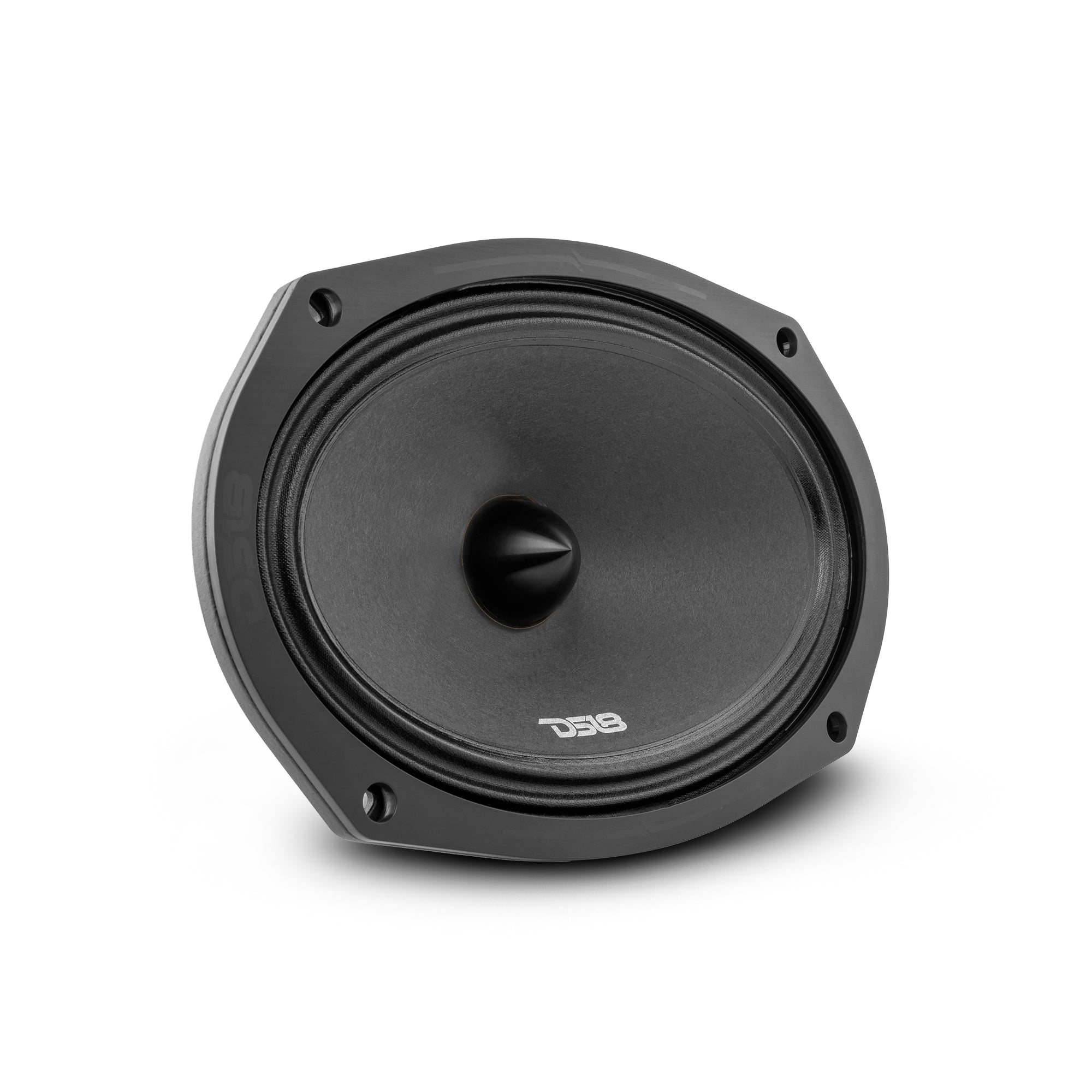

The PRO-ZXi694BM has a beautiful black basket face with strong black on black bullet dust cap.

This 4-ohm 6×9 Inches handles an enormous 300 watts RMS and 600 watts MAX power ensuring screaming loud mid and high range frequencies be acute and clear.

Highlights

• 6×9” Bullet black on black Pro-Audio Loudspeaker.
• Max Power Handling: 600 watts
• RMS Power Handling: 300 watts
• Frequency Response: 80Hz-12.5KHz
• Voice Coil Diameter: 1.5″
• Voice Coil Material: Glass Fiber
• Impedance: 4-Ohm
• Sensitivity: 98dB
• Magnet Weight: 30 Oz + 3 Oz
• Magnet Material: Ferrite + Neodymium
• Mounting Depth: 3.38″
• Recommended High Pass: 100Hz

Great For:

• Car Audio
• Pro Audio
• Motorcycles
• Home Studio
• Hi-Fi Installation
• Surround Sound
• Bookshelf Speakers
• Stunt Walls
• DIY Projects





Technical Details

                                                                                                               PRO- ZXI694BM Product Manual

<td SPECIFICATIONS

<td Nominal Diameter  6×9” / 152.4 x 228.6mm Nominal Impedance  4 ohms RMS Power Handling  300w MAX Power Handling  600w Sensitivity (1w/1m)  98dB Frequency Response 80Hz – 12.5KHz Recommended HI Pass Crossover 100 Hz Pair or single Single MOTOR Voice Coil Diameter 1.5” / 38.6mm Voice Coil Former Material  Glass Fiber Winding Material  CCAW Cone Material Paper Bullet Material Aluminum Surround Material Cloth Basket Material  Aluminum Basket Color Sandblasted Black Magnet Material Ferrite + Neodymium Magnet Weight 30+3 Oz Displacement Volume 0.62L / 0.0219ft3 MEASUREMENT Overall Diameter 9.43×6.57” / 240x167mm Overall Depth 3.7″ / 94mm Front Mount Baffle Cutout 8.74×6” / 222x153mm Mounting Depth 3.38” / 86mm Motor Diameter 4.72” / 120mm
