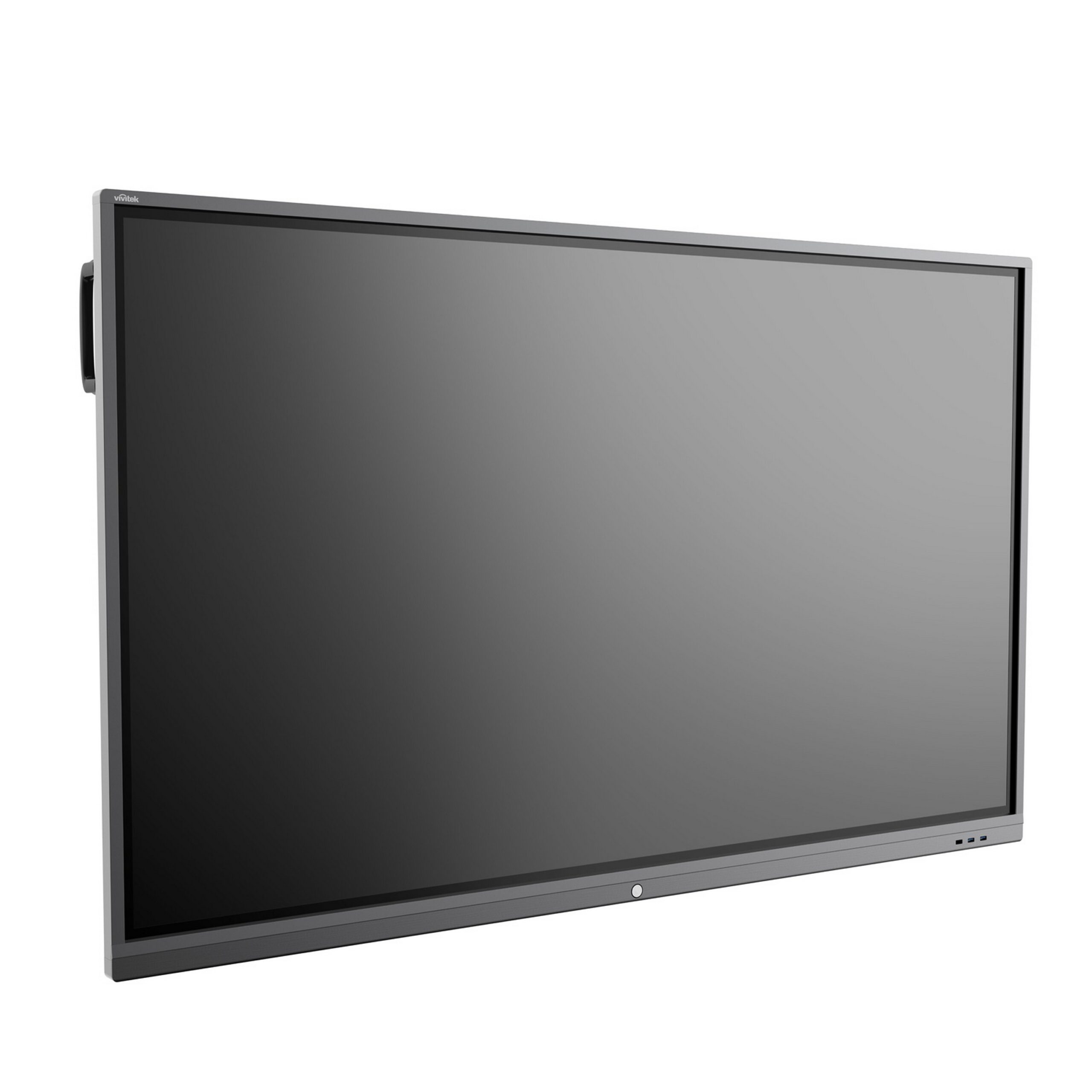

Vivitek NovoTouch Ek753i True 75-Inch 4K Interactive Display

True 75” 4K interactive display with wireless collaboration and touch interaction for the classroom

Key Features

• 75” display with ultraHD 4K (3,840 x 2,160) resolution for outstanding details and stunning visuals
• Backlit D-LED (ADS panel) technology for brighter pictures, flawless colors, richer textures, and extra wide viewing angels (178o/178o )
• Preconfigured with NovoConnect wireless presentation and collaborative system for cable-free and hassle-free presenting in the classroom
• Connect up to 64 users simultaneously, and allow 4 people to present on one display to facilitate large group work
• High contrast ratio and fast response time deliverables crisp, readable content
• Interactive functionality with up to a 20-point finger touch capabilities (10-point writing, 20-point touch) for on-screen annotation, drawing and common gesture controls
• Simple wireless display and true fast collaboration solution thanks to 802.11n/ac dual-band 2.4/5GHz support
• Remote manager with IT management software with automatic discovery and configuration
• Full suite of connectivity ports including HDMI-In VGA-In, Audio-In/Out, LAN, RS232 and USB.
• Front bezel USB ports for quick connection to USB memory drives and data
• 4mm thick toughened glass for added protection against scratches or screen damage
• Powerful front- facing stereo audio speakers with up to 32W of total power (16Wx2) and multiple audio-in/out ports

Technical Specifications

Type/Technology
Backlit D-LED (ADS Panel)
Panel Size
75”
Brightness
500cd/m2
Contrast Ratio (Typical)
4,000:1
Native Resolution
4K Ultra-HD (3840 x 2160)
Viewing Angle (H/V)
178o/178o
Aspect Ratio
16:9
Response Time (MS)
8ms
Refresh Rate (Hz)
60Hz
Estimated Life Time (Typ)
30,000 hours
Display Color (Bit)
1.07 billion (10-bit)
Installation Orientation
Landscape
Daily Operation (Hours/Days)
16/7
Technology
Infrared Touch
Touch Points
Writing: 10 Point (Standard)
Touch: 20 Point (Standard)
Touch Resolution
32,768 x 32,768
Surface Protection
4mm Thick Toughened Glass (Level 7H on Mohs Scale of Mineral Hardness)
Touch Tools
Finger, Stylus, Glove, Opaque Objects
Operating System
System Version: Android v8.0
CPU: Multi-Core high-performance ARMCPU
GPU: 4*Mali G51
RAM: 3GB DDR3
Internal Storage: 16GB (eMMC Flash) (About 9GB User Availability)
Input
Display: HDMI v2.0 (x3) (HDCP v2.2 Compliant), VGA-In (x1)
Audio: Audio-In (3.5mm) (x1)
Output
Display: HDMI-Out v2.0 (x1) (HDCP v2.2 Compliant)
Audio: Audio-Out (3.5mm) (x1), SPDIF-Out (x1)
Internet
LAN (RJ45) (x1)
Control
RS232-In (x1)
Wireless
Wifi (USB Module): IEEE 802.11 a/b/g/n/ac (2.4GHz/5GHz)
I/R Receiver: Front (x1) (+/-25 Angle, >8m Distance)
USB
Front: USB 2.0 (x2)
Side: USB3.0 (x3), USB Type B (x2)(For Touch Port)
Bottom: USB 2.0 (x1)
Default App
Screen mirroring (NovoConnect), Screen duplication over the corporate network (NT LiveScreen/ NT LiveReceiver), White board (Note), Screen login protection (Screen Lock), Screen Recording (NT Minutes), Video Conferencing, Over 50 Apps Built-In (NT App Store)
Expansion
Standard Intel 80pin OPS (Option)
Speakers
16W (x2) (Stereo)
Power Supply (Internal)
AC 100 – 240V, 50/60Hz (4.0A)
Consumption
400W
Standby Mode
<0.5W (Standby)
Dimension (L x H x D)
1,709.39 x 1,020.05 x 91.2mm (67.3” x 40.1″ x 3.6″)
Weight
55.3kg (122lbs)
VESA Mounting (FPMPMI)
4 – M8 – 25mm, 800 x 400mm (31.5″ x 15.7″)
Color
Grey
Accessories
AC Power Cord, VGA Cable, HDMI Cable, USB Cable, Audio Cable, Stylus (x2), Remote Control (W/Batteries), Wall Mount Kit, Wifi USB Module, Documentation Kit
UPC
813097025043
